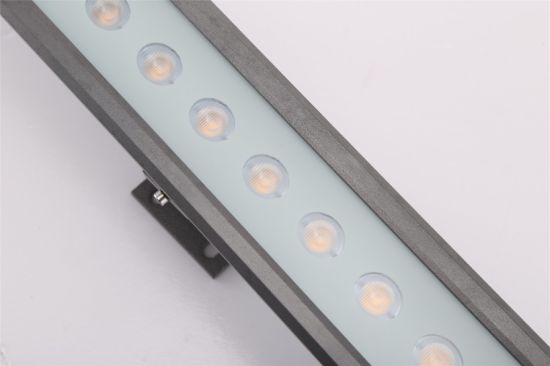

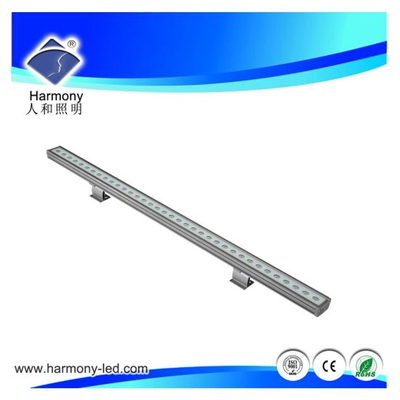

High Quality Exterior DMX512 36W LED Wall Washer Light
New design and new Features:
1.Respirator :could let the water and fog out of the body, much better waterproof.
2.Crescent-shaped bracket :can be mounted at 90degree.
3.External LED driver (in the bottom of the body) ,much better heatsink and Easier repair.
4.Shading plate for selection.
5.Transparent or Silk Screen Tempered glass for selection.
Designing by our engineers , We are the sole owner. So we could control good quality in every step.
Parameters
| Item NO. | RH-W14K |
| Power | 36*1W |
| Size | L1000*W56*H87MM |
| LED chip | Osram |
| Material | Aluminum alloy |
| Light efficiency | 90-120LM/W (W/WW) |
| Protection level | IP65 |
| Power Factor | 0.95 |
| CCT | W/W:2700-7500K |
| Lamp cover | Tempered glass |
| Light color | RGBW,W/WW/R/G/B is available |
| Voltage | DC24V,AC85V~265V is available |
| Beam angle | 30°/45°/60° /10*60 |
| Life span | 50,000hrs |
| Warranty time | 2-3years |
| Certificate | CE&ROHS&CCC&ISO9001 |
Advantages:
1. Low power consumption, high intensity, and stability.
2. Unique circuit design with strong resistance against static electricity ensures the stability of the strips for long lifespan guaranteed.
3. Solid-state, high shock and vibration resistant. NO RF interference.
4. CE and RoHS certifications
5. Pretty appearance as quality
6.70%-80% energy-saving
7. Long lifespan(50, 000H)
8. Fashion design and different types
9. Easy to install and use
10. No risk of mercury emission, environmental protection
11.2 years warranty
12. Working Temperature:-40-+85 degrees
Packaging and Delivery:
Each light with a transparent bag, 6PCS / outer box, up to export standard.
Capacity is 1000 metres/day, 2-5days for samples delivery, 15-25days for mass order.
Applications:
1) Ambience lighting for bar, dance hall
2) Lighting for billboard, factory,hotle,building of the outside wall
3) Lighting for landscaping building, wall washing for bars, clubs, Bridge,stages, plazas
Remarks:
1)LED Wall Washer should be used in accordance with the environment requirement
2)Set one as a host, the others set as address mode when many sets wall washer working together.
3)Set all the lights to the address mode(001-512), instead of the master internal control mode when the multiple connectors receive the command of DMX signal.
4)Setting the same address code, the lighting change with the same effect;
5)To ensure the transmission of the DMX signal is reliable, when lighting connecting beyond 100M, should increase amplifier to enlarge the DMX signal.
6)The input and output port should meet the requirements, otherwise it will damage lighting.
Harmony's main products:
LED Wall washer; Project flood light; Garden light.
Services:
1. With your inquiry (technology, price, MOQ, quality etc), we will reply within 24 hrs.
2. We will protect your sales area.
3. Good after-serive, we will solute any question when you using our products.
4. Competitive price, we would negoti if you have mass order.
5. OEM,ODM can be accepted .
