New design and new Features:
1.Respirator :could let the water and fog out of the body, much better waterproof.

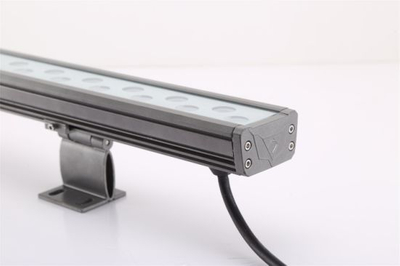

2.Crescent-shaped bracket :can be mounted at 90degree.
3.External LED driver (in the bottom of the body) ,much better heatsink and Easier repair.
4.Shading plate for selection.
5.Transparent or Silk Screen Tempered glass for selection.
Designing by our engineers , We are the sole owner. So we could control good quality in every step.
Parameters :
| Item NO. | RH-W13A |
| Power | 24W |
| Size | L1000*45*81.5MM |
| LED chip | Osram |
| Material | Aluminum |
| Light efficiency | 85% |
| Protection level | IP65 |
| Power Factor | 0.95 |
| CCT | W/W:2700-6500K |
| Lamp cover | Tempered glass |
| Light color | RGB,W/WW/R/G/B is available |
| Voltage | DC24V,AC85V~265V is available |
| Beam angle | 10*45° |
| Life span | 50,000hrs |
| Warranty time | 2-3years |
| Certificate | CE&ROHS,ISO9001 |
Applications:
1) Ambience lighting for bar, dance hall
2) Lighting for billboard, factory,hotle,building of the outside wall

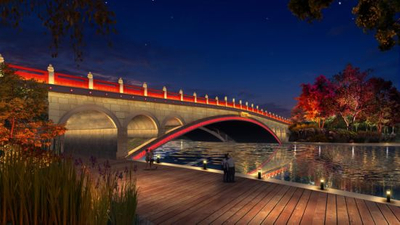

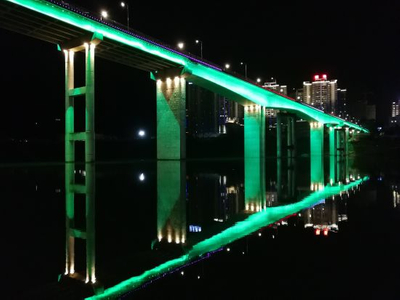

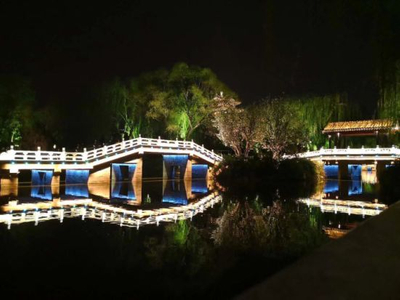

3) Lighting for landscaping building, wall washing for bars, clubs, Bridge,stages, plazas
DMX Control System :
A:LED Wall Washer should be used in accordance the environment requirement
B: 1PCS DMX control could work 170pcs led lighting fixtures , all the light change same effect at the same time .
C: Automatic set the address code.
D: Double signal cables(3 cores),double power cables (2 cores).Female and Male connection.
E. The led lighting fixtures more than 30M, need to signal amplifier .
F: The input and output port should meet the requirements, otherwise it will damage fixture.
Advantages:
1. Low power consumption, high intensity, and stability.
2. Unique circuit design with strong resistance against static electricity ensures the stability of the light fixture for long lifespan guaranteed.
3. Fashion and pretty appearance and best waterproof design.
4. NO UV,No risk of mercury emission, NO pollution,environmental protection
5.70%-80% energy-saving
6. Easy to install and use
Packaging and Delivery:
1. Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product
2. 3-9workdays for 600-3000PCS after deposit, 1-3days for samples.
Showroom:
Novel and unique design for showroom every year, showing new and fashion LED lighting fixtures.
Manufacturer :
1.With good quality control systems,we always believe Quality is our Culture.
2.with good advance and high technology machine, with good experience staff, with good R&D team.
3.Factory workshop : Clean and Compliance "6S " management system. Give employees a good working environment.
Aging before packing and delivery in our workshop:
To ensure all the led wall washer lights are good.
Services:
1. With your inquiry (technology, price, MOQ, quality etc), we will reply within 24 hrs.
2. We will protect your sales area.
3. Good after-sales service, we will solute any question when you using our products.
4. Competitive price, we would negoti if you have mass order.
5. OEM,ODM can be accepted .
Payment items:
1. Paypal
2. Western Union
3. T/T: 30% deposit before production, 70% balance before delivery
