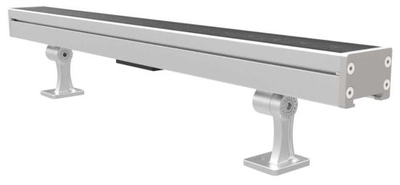

Outer Aluminum Extrusion 48W Wall Washer Lamp LED Outdoor Building Light

  • RH-W23
  • Harmony Lighting
  • 9405409000
  • Jiangmen, China
  • 100000PCS/Month
  • T/T
  • Export Standard

outer Aluminum Extrusion 48W Wall Washer Lamp led outdoor building light

New Features:
1. The brightness is uniform and gradually fades; the continuous surface is installed without dark areas;
2. Grille net and shading board, double anti-glare;
3. Structure waterproof, IP grade can reach above IP66;
4. Equipped with air pressure valve (Respirator) to ensure the pressure balance inside and outside the lamp;
5. Multi color mixing, DMX512 control system, gray level: 65536 levels, refresh rate: 4K;
6. The dial adjustment bracket, the gear bite adjustment angle, stable and reliable; the irradiation angle can be adjusted by 180°;
7, 4mm flat tempered glass, lamp body without step design, with self-cleaning, no dust accumulation and other characteristics;
8. The lamps are powered by waterproof three-way power supply, and the power transmission at a longer distance;
9. Designed by our engineers, We are the sole owners. So we could control good quality step by step.


Item NO. RH-W23
Power 24*2W

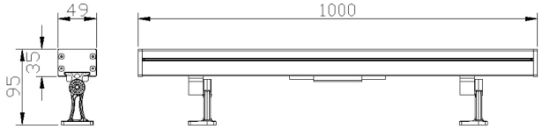

Size L1000*W49*H95MM
LED chip Osram
Material Aluminum    alloy
Light efficiency 90-120LM/W
Protection level IP65
Power Factor 0.95
CCT w/ww:2700-7500K
Lamp cover Dark gray
Light color RGBW,W/WW/R/G/B is available
Voltage DC24V,
Beam angle 10*30 °
Life span 50,000hrs
Warranty time 2-3years
Certificate CE&ROHS&CCC&ISO9001

Outer Aluminum Extrusion 48W Wall Washer Lamp LED Outdoor Building Light

1)LED wall washer with high power LED chip, high luminance, low energy cost, long life span
2)Driving circuit can endure high-temperature, avoiding short circuit, it has high reliability
3)High-brightness, good heat emission, nice colors can substitute the original lights
4)Long working life, soft light no hurt for eyesight.
5)Energy saving, Environment friendly
6)No UV or IR radiation
7)Integrated design with hosing and electric parts, legerity, beautiful and easy to install

1) Lighting for lawn, tunnel, parking lot, gas station

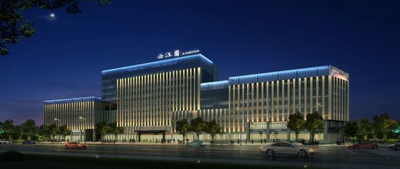

2) Lighting for virescence site, advertising board, outside wall, monomer architecture
3) Lighting for the special equipment of hospital, civilization
4) Ambience lighting for bar, hotel, dance hall
5) Lighting for billboard, building, outside wall, factroy.
6) Lighting for streets, stadiums, bridges, outside Buildings, car Parks, billboards
7) Lighting for marketplace, library, museum, supermarket, storage rooms, corridor
8) Lighting for landscaping building, wall washing for bars, clubs, stages, plazas
Outer Aluminum Extrusion 48W Wall Washer Lamp LED Outdoor Building Light

1)LED Wall Washer should be used in accordance with the environment requirement
2)DMX512 control system:
A: Set one as a host, the others set as address mode when many sets wall washer working together.
B: Set all the lights to the address mode(001-512), instead of the master internal control mode when the multiple connectors receive the command of DMX signal.
C: Setting the same address code, the lighting change with the same effect;
D: To ensure the transmission of the DMX signal is reliable, when lighting connecting beyond 100M, should increase amplifier to enlarge the DMX signal.
E: The input and output port should meet the requirements, otherwise it will damage lighting.

Competitive Advantages
· Experienced technical staff
· Advanced equipment
· High quality
· Experienced R&D department
· OEM accepted
· Strong production capability
· Large scale production lines
· Clients' special requirement accepted
· Unique design
· Good reputation

Harmony's main products:
Led project flood light, led garden light, LED Wall washer;

1. With your inquiry (technology, price, MOQ, quality etc), we will reply within 24 hrs.
2. We will protect your sales area.
3. Good after-sales service , we will solve any problems when you using our products.
4. Competitive price, we would negoti if you have mass order.
5. OEM,ODM can be accepted .

Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product

3-9workdays for 1000-3000PCS after deposit, 1-3days for sample

Payment terms:

T/T: 30% deposit before production, 70% balance before delivery.
