RGB with DMX Control outdoor security lights LED Wall Washer Light
New design and new Features:
1.Respirator :could let the water and fog out of the body, much better waterproof.
2.Adjustable bracket :can be mounted at 90degree.
3.External LED driver (in the bottom of the body) ,much better heatsink and Easier repair.
4.Anti glare cover for selection.
5.Silk Screen Tempered glass.
6.Designing by our engineers , We are the sole owner. So we could control good quality in every step.
Parametres
| Item NO. | RH-W13 |
| Power | 24W |
| Size | 1000*45*81MM |
| LED chip | OSRAM LED |
| Material | Aluminum +Tempered glass |
| changes in effect | Always lighting |
| Protection level | IP67 |
| Power Factor | 0.95 |
| CCT | R:620-625K,G:520-525K,B:460-465K |
| Lamp cover | Dark Gray |
| Light color | RGB |
| Voltage | DC24V |
| Beam angle | 10*45° |
| Life span | 50,000hrs |
| Warranty time | 2-3years |
| Certificate | CE&ROHS&ISO9001 |
Applications:
1) Ambience lighting for bar, dance hall
2) Lighting for billboard, factory,hotle,building of the outside wall

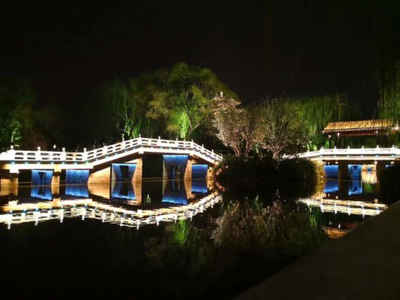

3) Lighting for landscaping building, wall washing for bars, clubs, Bridge,stages, plazas
Remarks:
1)LED Wall Washer should be used in accordance with the environment requirement
2)DMX512 control system:
A: Set one as a host, the others set as address mode when many sets wall washer working together.
B: Set all the lights to the address mode(001-512), instead of the master internal control mode when the multiple connectors receive the command of DMX signal.
C: Setting the same address code, the lighting change with the same effect;
D: To ensure the transmission of the DMX signal is reliable, when lighting connecting beyond 100M, should increase amplifier to enlarge the DMX signal.
E: The input and output port should meet the requirements, otherwise it will damage lighting.
Harmony's main products:
LED wall washer light,led garden light,LED project flood light,
Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into production.
4. Protection of your sales area, ideas of design and all your private information.
5. Best quality and competitive price
Packaging:
Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product
Delivery:
3-9workdays for 1000-3000PCS after deposit, 1-3days for sample
Payment items:
Paypal
Western Union
T/T: 30% deposit before production, 70% balance before delivery.
