RH-C26 12W IP67 LED Aluminium Profile 10mm Thickness Opal PMMA Diffuser No Darkness Outdoor Linear Lights
Parameters :
| Item NO. | RH-C26 |
| Power | 12W |
| Size | L1000.6*W23.8*L44.6MM |
| LED chip | Epistar/Osram |
| Material | Aluminum alloy |
| Light efficiency | 85% |
| Protection level | IP66 |
| Power Factor | 0.95 |
| CCT | W/WW:2700-6500K |
| Lamp Color | Iron Gary,Alumium Color is availble |
| Light color | RGBW,W/WW/R/G/B is available |
| Voltage | DC24V |
| Beam angle | 120° |
| Net Weight | 0.45KG |
| Warranty time | 2-3years |
| Certificate | CE&ROHS,CCC,ISO9001 |

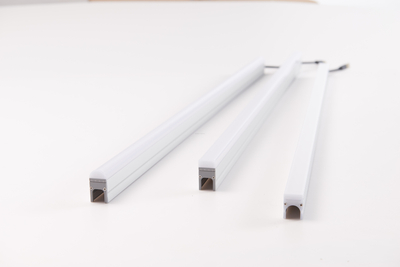

Clear Product Pics:
New Features:
1.simple industrial appearance design,bloom the beauty of pure line.
Easy to install.Integrated light into buillding ,add color for city.The surface of the lamp body is oxidized,wear-resisting and rust-proof,which made it able to resist the bad weather efffectively.
2.Combined with LED light Angle calculation, a variety of light ways, to show the uniform smooth bright soft and comfortable effect.The unique process design of the end cover can effectively solve the dark area between the lamp and the lamp.
3.Core configuration aspect:multi-color with DMX control system, using high grey grate 65536 chips , refresh rate reach 4K.The program plays smoonthly with the speed upto 25ms/frame.
4.Quickly connect male and female plugs, precise pin core hole position, prevent plugs connection worong direction, the connection is firm,stable and reliable, easy to install and remove, not easy to disconnect.
5.The Wires come out from middle body,can transmit to remote place.with groove for hiding wire , can pass two" BW6" wires(outside diameter 6.2MM).
6.The lamp body waterproof fill with fully glue,protection rate upto IP66.
Application:
1. Amount Lighting
2. Cabinet and under counter lighting
3. Shelf lighting
4. Exhibition stands and panels

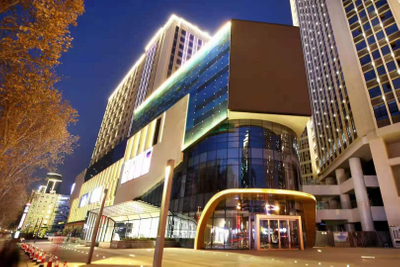

5. Architectural, buliding lighting
6. Ceiling, wall cover
7. Step lighting
8. Back lighting
9. Back lit signs light boxes
10. Indoor and outdoor any place lighting
1.Payment: 30% deposit, 70% balance before shipment by T/T or Western Union.
2.Lead time:15-25days for normal order, instant delivery from regular inventory.
3.Sample: can be offered.
4.Shipping freights are quoted under your requests.
5.Shipping port: JiangMen China.
6.Discounts are offered based on order quantities.
Factory Tour:
Jiangmen Harmony Lighting Co., Ltd established in 2006. Specialized in LED outdoor landscape lighting .
Good quality items& professional service are provided, and we gain really good reputation from clients around the world. Please contact us for more product info, and we won't let you down.
Professional Trade Fair of Harmony Lighting:
Warranty:
2 years (24-months) Warranty for defective items.
All products purchased from our company are guaranteed to keep in good repair for two years.
If quality problems happen in guarantee period, our company will maintain or replace for free products. If you are caught in some problems when using our products, welcome to contact us at any time.
FAQ:
Q1: Are you a manufacturer or a trade company?
We are a manufacturer, with R&D and high standard production workshop;
Q2: Do you have the MOQ request?
Normally MOQ is 300pcs, but we can do customized items in less quantity;
Q3: What's the production lead time?
The lead time 3-7 working days for samples, and 10-15 working days for bulk order. It depends on styles and designs you choose;
Q4: What is warranty time for your products? If any broken, what I will do?
3-5 years warranty for most of our products. During warranty time, we will arrange the new replacement to you free of charge for broken items.
Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce as per customers' requirement. For example, different length, diameter, different voltage and higher lumen efficiency of led, IP Class etc.
Q6: What kind of payment methods do you accept?
T/T, West Union and Paypal
Q7: What kind of shipping methods you use?
Sea/Air
International express: DHL, UPS, FEDEX, EMS, TNT (mostly used, 3-7 working days delivered).
Thank you for your time. Please feel free to contact our team for questions, quotations and products details.
