Home » LED wall washer » RH-W21 24W Outdoor Customized Lighting IP67 Fixture Linear 24W LED Wall Washer
Share to:

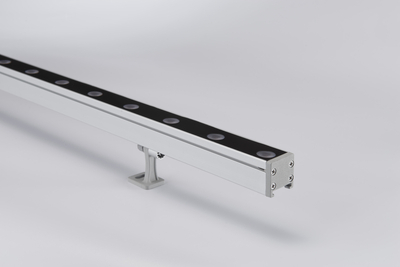

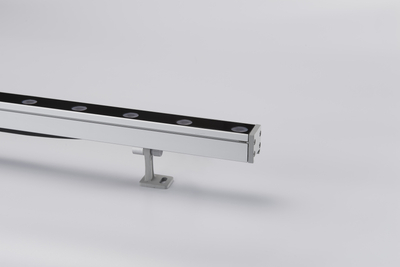

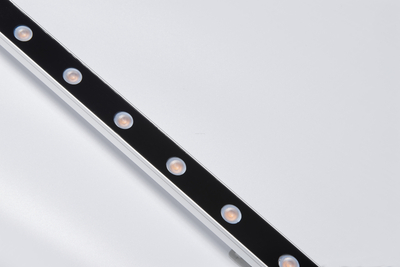

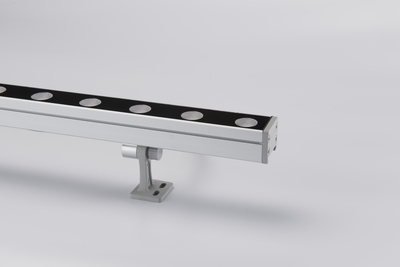

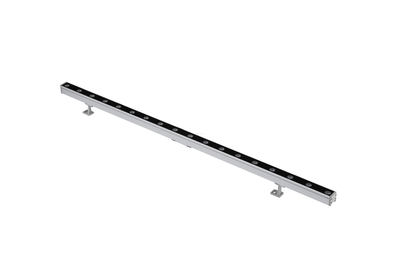

RH-W21 24W Outdoor Customized Lighting IP67 Fixture Linear 24W LED Wall Washer

1.The brightness of the light is evenly distributed,no dark area;
2.With grille net and anti-glare side cover,double -anti glare;
3.Structural waterproof,protection level up to IP66;
4.Equip an air pressure valve, ensure the balance of air pressure inside or outside
5.Multi-color with DMX512 control system,grey rate upto 65536 grade,refresh rate upto 4K. 6.Bracket With dial and gear to adjust anglel,stable and reliable; 180°adjust projection angle; 7.4mm flat tempered glass,body no step design,no dust and clean self;
8.Using waterproof 3-ways power supply,can transmit electricity to more remote distance.
Quantity:
  • RH-W21
  • Harmony Lighting
  • 9405409000
  • Jiangmen, China
  • 100000PCS/Month
  • T/T
  • Neutral Packing

Outdoor Customized Lighting IP67 Fixture Linear 24W LED Wall Washer


New Features:
1.The brightness of the light is evenly distributed,no dark area;
2.With grille net and anti-glare side cover,double -anti glare;
3.Structural waterproof,protection level up to IP66;
4.Equip an air pressure valve, ensure the balance of air pressure inside or outside
5.Multi-color with DMX512 control system,grey rate upto 65536 grade,refresh rate upto 4K. 6.Bracket With dial and gear to adjust anglel,stable and reliable;  180°adjust projection angle; 7.4mm flat tempered glass,body no step design,no dust and clean self;
8.Using waterproof 3-ways power supply,can transmit electricity to more remote distance.


Parameters:
Item NO. RH-W21
Power 24W
Size L1000*W28*H74MM
LED chip Osram
Material Aluminum    alloy
Light efficiency 80-100LM/W
Protection level IP67
Power Factor 0.95
CCT w/ww:2700-7500K
Lamp color Dark Gray
Light color W/WW/RGBW is available
Voltage DC24V/AC85V~265V
Beam angle 15*45 Degrees
Life span 50,000hrs
Warranty time 2-3years
Certificate CE&ROHS,CCC,ISO9001

downLoadImg (13)

Applications:
1) Ambience lighting for bar, dance hall
2) Lighting for billboard, factory,hotle,building of the outside wall
3) Lighting for landscaping building, wall washing for bars, clubs, Bridge,stages, plazas


downLoadImg (10)


DMX Control System :


A:LED Wall Washer should be used in accordance the environment requirement
B: 1PCS DMX control could work 170pcs led lighting fixtures , all the light change same effect at the same time .
C: Automatic set the address code.
D: Double signal cables(3 cores),double power cables (2 cores).Female and Male connection.
E. The led lighting fixtures more than 30M, need to signal amplifier .
F: The input and output port should meet the requirements, otherwise it will damage fixture.



Packaging and Delivery:
1. Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product
105*29*19CM/8PCS.
2.  3-9workdays for 600-3000PCS after deposit, 1-3days for samples.


Showroom:
Novel and unique design for showroom every year, showing new and fashion LED lighting fixtures.
downLoadImg (8)
Manufacturer :

1.With good quality control systems, get ISO 9001 Certification in 2015, we always believe Quality is our Culture.
2.
with good advance and high technology machine, with good experience staff, with good R&D team.
3.Factory workshop : Clean and Compliance 6S management system. Give employees a good working environment.


Aging before packing and delivery in our workshop:
To ensure all the led wall washer lights are good.



Harmony's main products:
LED wall washer light,project spotlight, LED Garden light


Services:

1. With your inquiry (technology, price, MOQ, quality etc), we will reply within 24 hrs.
2. We will protect your sales area.
3. Good after-sales service , we will solve any problems when you using our products.
4. Competitive price, we would negoti if you have mass order.
5. OEM,ODM can be accepted .



Payment items:
1. Paypal
2. Western Union
3. T/T: 30% deposit before production, 70% balance before delivery
4.The price is based on the light color :white

downLoadImg (6)
