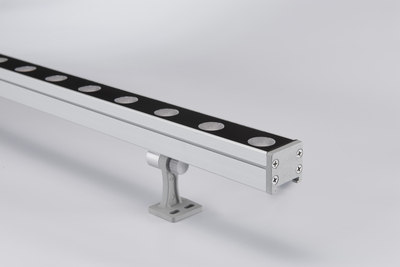

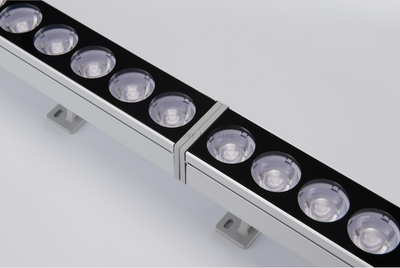

RH-W23 Outer Wall Lamp Landscape Lighting 56W Osram LED Waterproof Wall Washer Lighting Fixtures Light Fitting
New features:
1.The brightness of the light is evently distributed, no dark area.
2.It have grille and light barrier,double anti-glare.
3.Structural waterproof,protection level up to IP66.
4.Equip a air pressure valve,ensure the same air pressure inside or ourside the Lamp body .
5.Multi-color with DMX control system, gray level up to 65536, refresh rate:4K.
6.It have a dial to adjust the bracket,stable and reliable, it can 180 degree adjust the beam angle .
7.4mm tempered glass,excellent light body design,easy to clean .
8.Waterproof , 3-way power supply,it can transport the electric to more remote place.
Parameters:
| Item NO. | RH-W23 |
| Power | 24W |
| Size | L1000*W28*H74MM |
| LED chip | Osram |
| Material | Aluminum alloy |
| Light efficiency | 90-120LM/W |
| Protection level | IP66 |
| Power Factor | 0.95 |
| CCT | w/ww:2700-7500K |
| Lamp cover | Alumina color |
| Light color | RGBW,W/WW/R/G/B is available |
| Voltage | DC24V |
| Beam angle | 20-60 ° |
| Life span | 50,000hrs |
| Warranty time | 2-3years |
| Certificate | CE&ROHS&CCC&ISO9001 |
Applications:
1) Ambience lighting for bar, dance hall
2) Lighting for billboard, factory,hotle,building of the outside wall
3) Lighting for landscaping building, wall washing for bars, clubs, Bridge,stages, plazas
Harmony Lighting Main Products:
led wall washer light, led module light,led flood light
DMX Control System :
A:LED Wall Washer should be used in accordance the environment requirement
B: 1PCS DMX control could work 170pcs led lighting fixtures , all the light change same effect at the same time .
C: Automatic set the address code.
D: Double signal cables(3 cores),double power cables (2 cores).Female and Male connection.
E. The led lighting fixtures more than 30M, need to signal amplifier .
F: The input and output port should meet the requirements, otherwise it will damage fixture.
Advantages:
1. Low power consumption, high intensity, and stability.
2. Unique circuit design with strong resistance against static electricity ensures the stability of the light fixture for long lifespan guaranteed.
3. Fashion and pretty appearance and best waterproof design.
4. NO UV,No risk of mercury emission, NO pollution,environmental protection
5.70%-80% energy-saving
6. Easy to install and use
Packaging and Delivery:
1. Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product
2. 3-9workdays for 600-3000PCS after deposit, 1-3days for samples.
Showroom:
Novel and unique design for showroom every year, showing new and fashion LED lighting fixtures.
Manufacturer :
1.With good quality control systems, get ISO 9001 Certification in 2015, we always believe Quality is our Culture.
2.with good advance and high technology machine, with good experience staff, with good R&D team.
3.Factory workshop : Clean and Compliance "6S " management system. Give employees a good working environment.
Aging before packing and delivery in our workshop:
To ensure all the led wall washer lights are good.
Services:
1. With your inquiry (technology, price, MOQ, quality etc), we will reply within 24 hrs.
2. We will protect your sales area.
3. Good after-serive, we will solute any question when you using our products.
4. Competitive price, we would negoti if you have mass order.
5. OEM,ODM can be accepted .
Payment items:
T/T: 30% deposit before production, 70% balance before delivery
